IIT-nOT: Multichanel optical etalon tester

Order Now

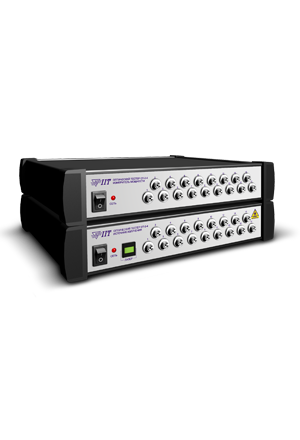

IIT-nOT measures attenuation in optical fibers, optical cables, and passive optical components under mechanical and temperature test, and consists of a multichannel laser source and a multichannel power meter

  • Specifications

  • General Characteristics

  • Advantages

  • Number of measurement channels

    4-16

  • Wavelength of a laser source, nm

    1310±20 or 1550±20

  • Output optical power for each channel, dBm

    > -23

  • Loss resolution, dB

    0.001

  • Uncertainty of attenuation change measurement, dB

    < 0.01

  • Attenuation measurement range, dB

    0 - 20

  • Each channel input power range, dBm

    -40 ... -18.5

  • Uncertainty of optical power measurement, %

    < 10

  • Optical source stability, dB:
    -15 min
    -1 h
    -8 h

    < 0.005
    < 0.02
    < 0.06

  • Highly accurate and long-term stable thanks to the usage of an external reference optical channel

  • Simultaneously measures optical power levels in each optical channel (dBm) and attenuation change (dB), and calculates the fiber attenuation coefficient change (dB/km)

  • IIT-nOT operating control, representing, storing and data processing are provided by the PC

  • Records measurement results on schedule or manually

  • Simultaneously measures up to 16 fibers

  • High long-term stability

  • Can store data in the Excel format

  • The modules can be in different places when measuring the optical fiber
